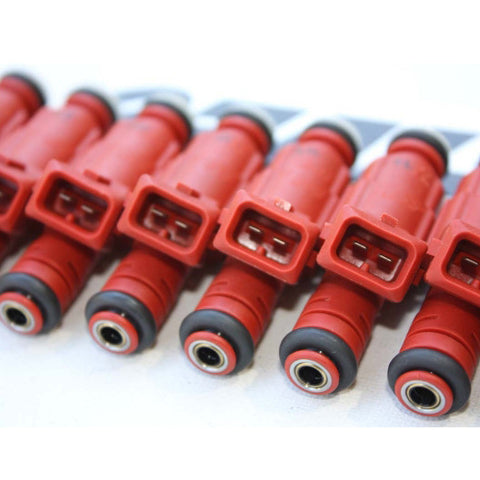

These custom injectors for your B5 S4 are a requirement to run GIAC's E85 file for K04/F21 turbos.
These have the same body length as Green Giant injectors, and will be a drop in replacement for them. If you do not have Green Giant's, fuel rail spacers will be required.
Flow rates:
54.8 lbs/hr, 575 cc/min at 43.5 psi (3.0 BAR)
60.0 lbs/hr, 630 cc/min at 50.8 psi (3.5 BAR)
63.8 lbs/hr, 670 cc/min at 58.0 psi (4.0 BAR)
Dead Time (Latency): 0.596 ms at 14 volts at 3 Bar
Fuel Delivery: 4-hole fuel nozzle
Spray angle: 15 degrees - use for multi-valve engines.
Length: 3 inches, 74 mm
Body Diameter: 16 mm
O-rings: Top and bottom, 14.5 mm. Fits US/Euro 14 mm bore fuel rails.
Resistance: 12.5 Ohms (high impedance)
The injectors incorporate a four-hole disc fuel delivery nozzle with a wide cone, 15 degree spray for superior fuel atomization.
